Product Installation Manuals

Download comprehensive installation guides for all Mexis products. Each guide contains detailed instructions, diagrams, and troubleshooting tips.

Kitchen Tandem Box

PDF Last updated: May 2024

Complete installation guide for Mexis Kitchen Tandem Box systems including soft-close mechanism setup and alignment.

Download Guide

Aluminum Profiles

PDF Last updated: April 2024

Detailed instructions for cutting, joining, and installing aluminum profiles for wardrobe systems.

Download Guide

Mortise Lock

PDF Last updated: March 2024

Step-by-step guide for proper mortise lock installation and key alignment procedures.

Download Guide

Telescopic Channel

PDF Last updated: February 2024

Comprehensive guide for installing telescopic channels in drawers and sliding systems.

Download Guide

Hydraulic Gas Pump

PDF Last updated: January 2024

Installation and maintenance guide for hydraulic gas pump systems in furniture applications.

Download Guide

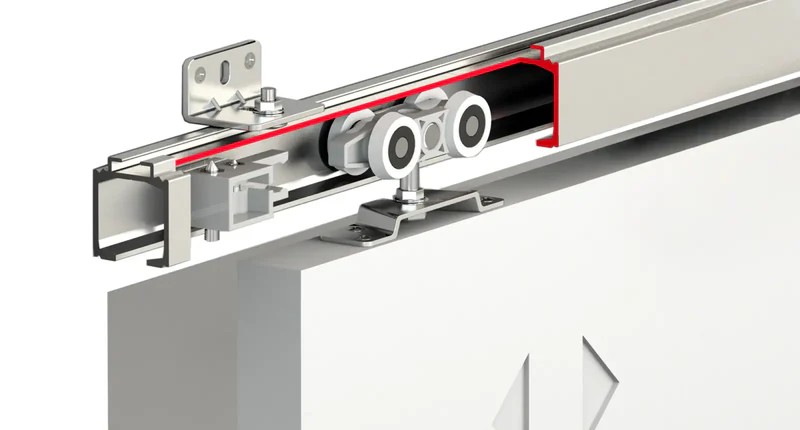

Sliding Fittings

PDF Last updated: December 2023

Complete guide for installing sliding door fittings and track systems.

Download Guide

Step-by-Step Installation

Kitchen Tandem Box Installation Guide

Prepare the Cabinet

Ensure the cabinet opening is square and the sides are parallel. The standard height for base cabinets is 720mm. Check that the cabinet is level both front-to-back and side-to-side.

Important: The cabinet must be perfectly square for proper tandem box operation. Maximum tolerance is ±1mm over the height of the cabinet.

Mark the Mounting Positions

Using the provided template, mark the positions for the tandem runners on both sides of the cabinet. The standard height from the cabinet floor to the bottom of the runner is 50mm.

Install the Runners

Secure the runners to the cabinet sides using the provided screws. Ensure all screws are tightened securely but avoid overtightening which may strip the screw holes.

Attach the Drawer Box

Slide the drawer box onto the runners until it clicks into place. Test the smooth operation of the drawer and adjust if necessary using the built-in adjustment screws.

Final Adjustments

Use the height adjustment screws to level the drawer front with adjacent drawers or cabinet fronts. Adjust the front-to-back alignment using the depth adjustment screws.

Pro Tip: For perfect alignment, adjust with the drawer in the closed position and check alignment in both closed and open positions.

Recommended Tools

For best results, use these tools when installing Mexis hardware products

Measuring Tape

Precision measurement

#2 Phillips Screwdriver

For most screws

Rubber Mallet

Gentle adjustments

Spirit Level

Ensuring level installation

Marking Pencil

Accurate marking

Square

Checking right angles

Installation FAQs

What should I do if my drawer isn't closing smoothly?

First, check that the cabinet is perfectly square and the runners are installed at exactly the same height on both sides. If the drawer still doesn't close smoothly, use the adjustment screws on the runners to fine-tune the alignment. Small adjustments of 1-2mm can make a big difference in operation.

Can I install Mexis hardware on existing cabinets?

Yes, Mexis hardware can be retrofitted to most existing cabinets. You may need to make some modifications to the cabinet interior to accommodate the new hardware. Our universal mounting system allows for flexible installation in most standard cabinet configurations. Measure your existing cabinet carefully before purchasing to ensure compatibility.

What's the maximum weight capacity for tandem drawer systems?

Our standard tandem drawer systems are rated for 25kg per pair of runners. For heavy-duty applications, we offer reinforced systems rated for up to 50kg. Always distribute weight evenly in the drawer and avoid exceeding the rated capacity to ensure smooth operation and longevity of the hardware.

How do I maintain my hardware for long-lasting performance?

For optimal performance, clean runners and moving parts with a dry cloth periodically. Apply a small amount of silicone-based lubricant (not oil-based) to the runners every 12-18 months. Avoid getting cleaning products on the hardware as some chemicals can degrade the finish or affect the soft-close mechanism.

What's the warranty on Mexis hardware products?

All Mexis hardware comes with a 5-year limited warranty against manufacturing defects when installed according to our instructions. The warranty covers replacement of defective parts but does not cover damage from improper installation, misuse, or normal wear and tear. Register your product on our website to activate your warranty coverage.
